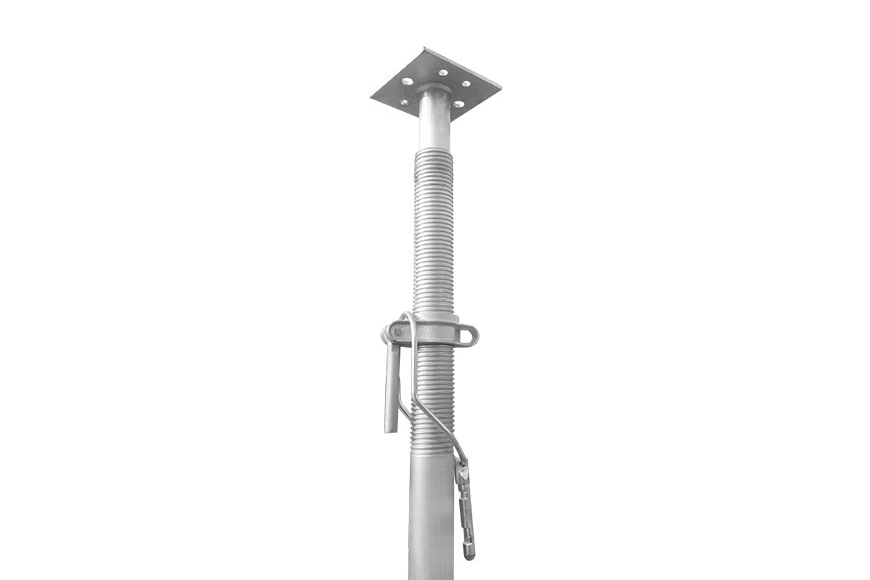

TECON Acrow Prop is designed with 5 sizes ranging from 1060mm to 4900mm with axial bearing load limits from 7kN to 42.5 kN. TECON Acrow Prop is widely used in certain region of the world such as Australia.
Following AS 3610 standard
Cast steel nut
Fully rolled thread on an outer tube directly
Powder Coating and hot-dip galvanization finishing for option
Outer and inner diameter 60.3 mm and 48.3 mm
Inner tube is made from high tensile steel profiles Q355
| Model | Adjustable Range (mm) | Outer tube (mm) | Inner tube (mm) | Unit Weight (kg) |
| ACW00 | 1060-1830 | 60.3×2.8 | 48.3×3.5 | 12.38 |
| ACW01 | 1610-2800 | 60.3×2.8 | 48.3×3.5 | 16.25 |
| ACW02 | 1910-3400 | 60.3×2.8 | 48.3×3.5 | 18.57 |
| ACW03 | 2180-3940 | 60.3×3.0 | 48.3×3.5 | 21.21 |
| ACW04 | 3110-4900 | 60.3×3.2 | 48.3×4.2 | 27.78 |
Applied and used in Australian markets.
