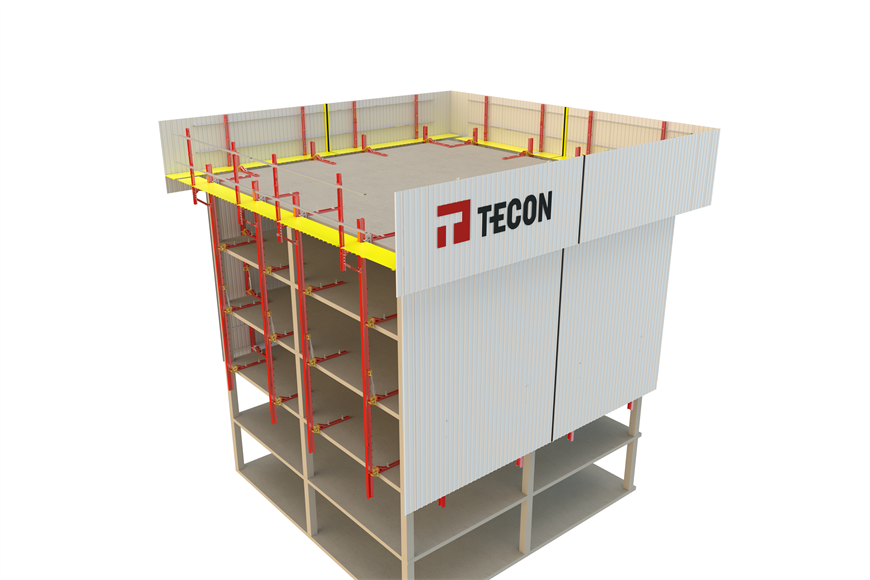

TECON Protection Screen is a modular designed facade protection system which can climb automaticly via your high rise building by mobile hydraulic cylinder. It provides a maximum of three floors coverage with optional numbers of the platform. Therefore, it garantees a safe, efficient and weather-shielded working space for your site crews in hight position.
Independent self-climbing system saves crane usage during the whole construction phase
Full sealed facade protection ensures the safe operation condition of site crews
Customized storey heights and platform numbers meet different projects requirement
Embedded anchor system ensures firm attaching to the concrete structure
Universal utilization among different projects

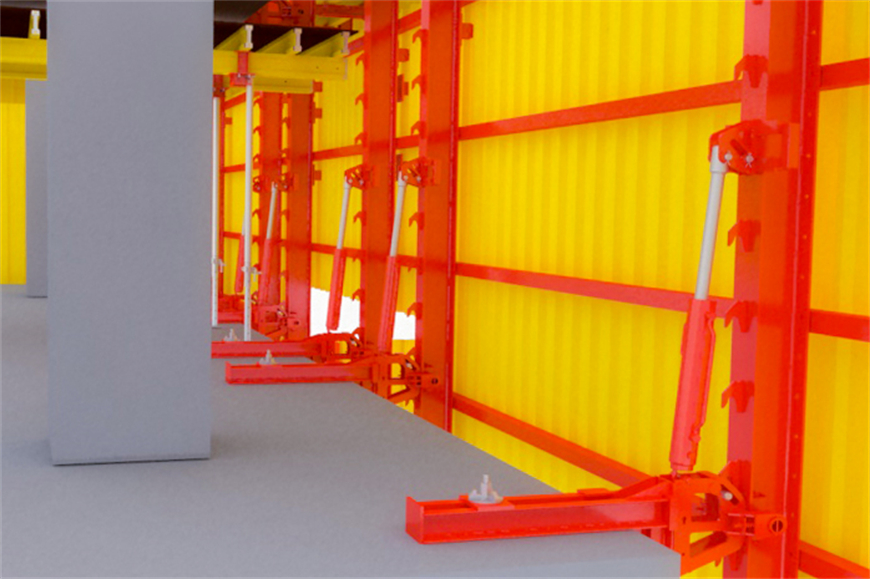

Climbing device: Hydraulic cylinder
Climbing speed: 25 min/floor/unit
Platform width from the structure: 1 m
Platform quantity: 1~4 floors
Floor coverage height: 2.5 to 3.5 floors, 14 m height maximum
The degree of backwards, forwards, right and left tilting angle: ±10°
Load capacity of the platform during formwork operation and concrete maintenance is 0.75 kN/sqm
Standard unit size: 7 m with 2 pcs brackets
Façade protection and work platform for high rise building with regular shape layout
