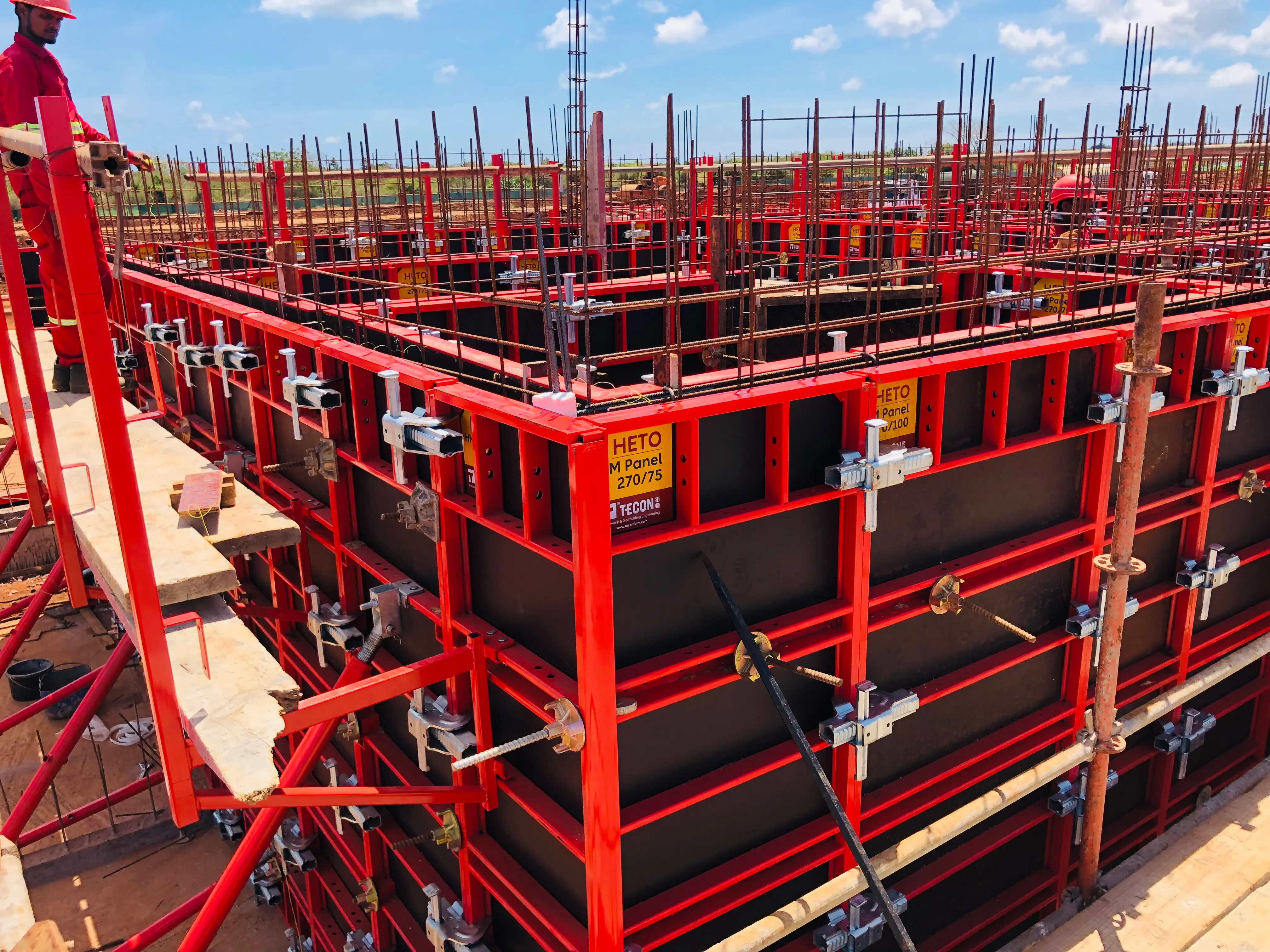

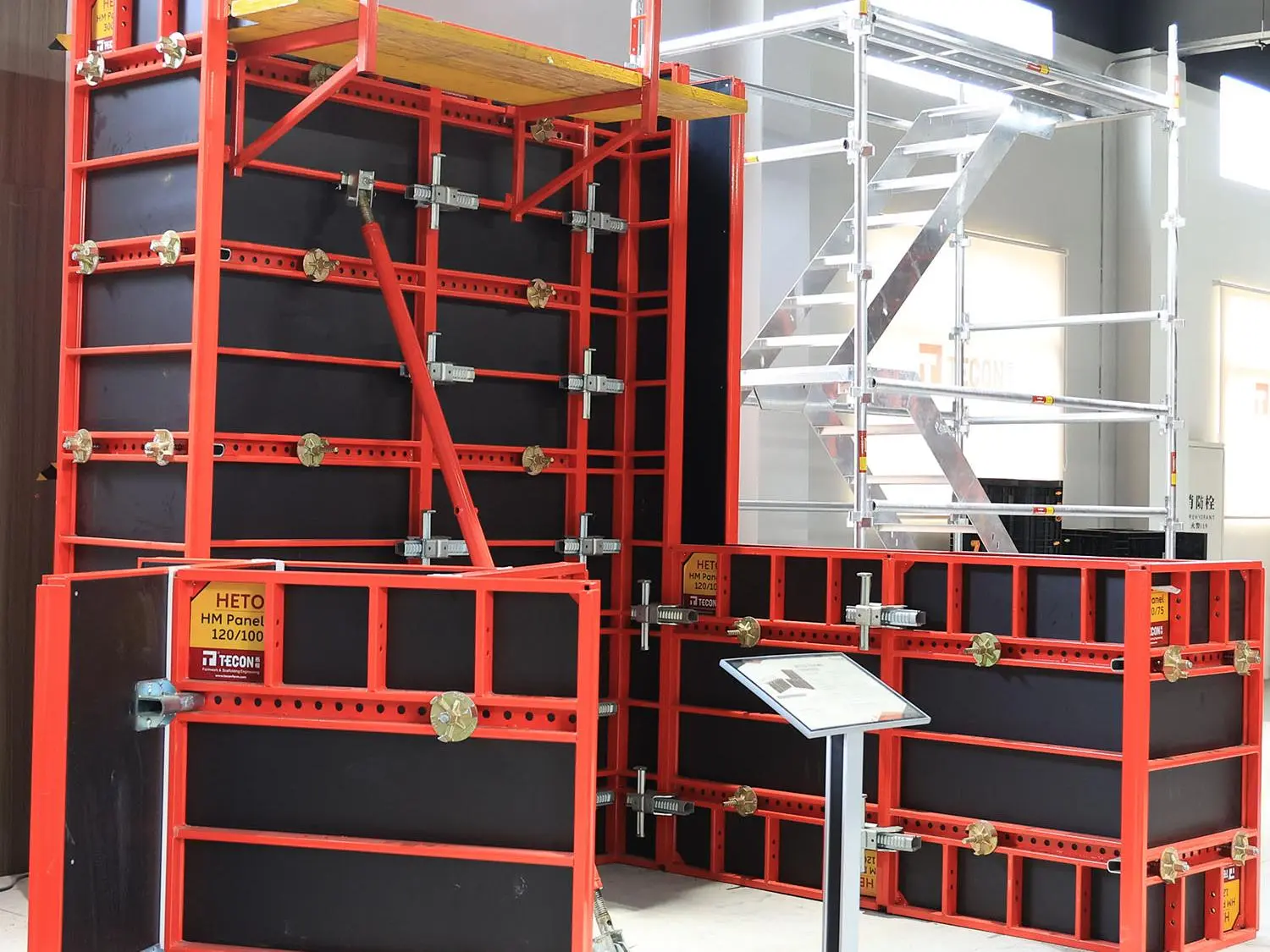

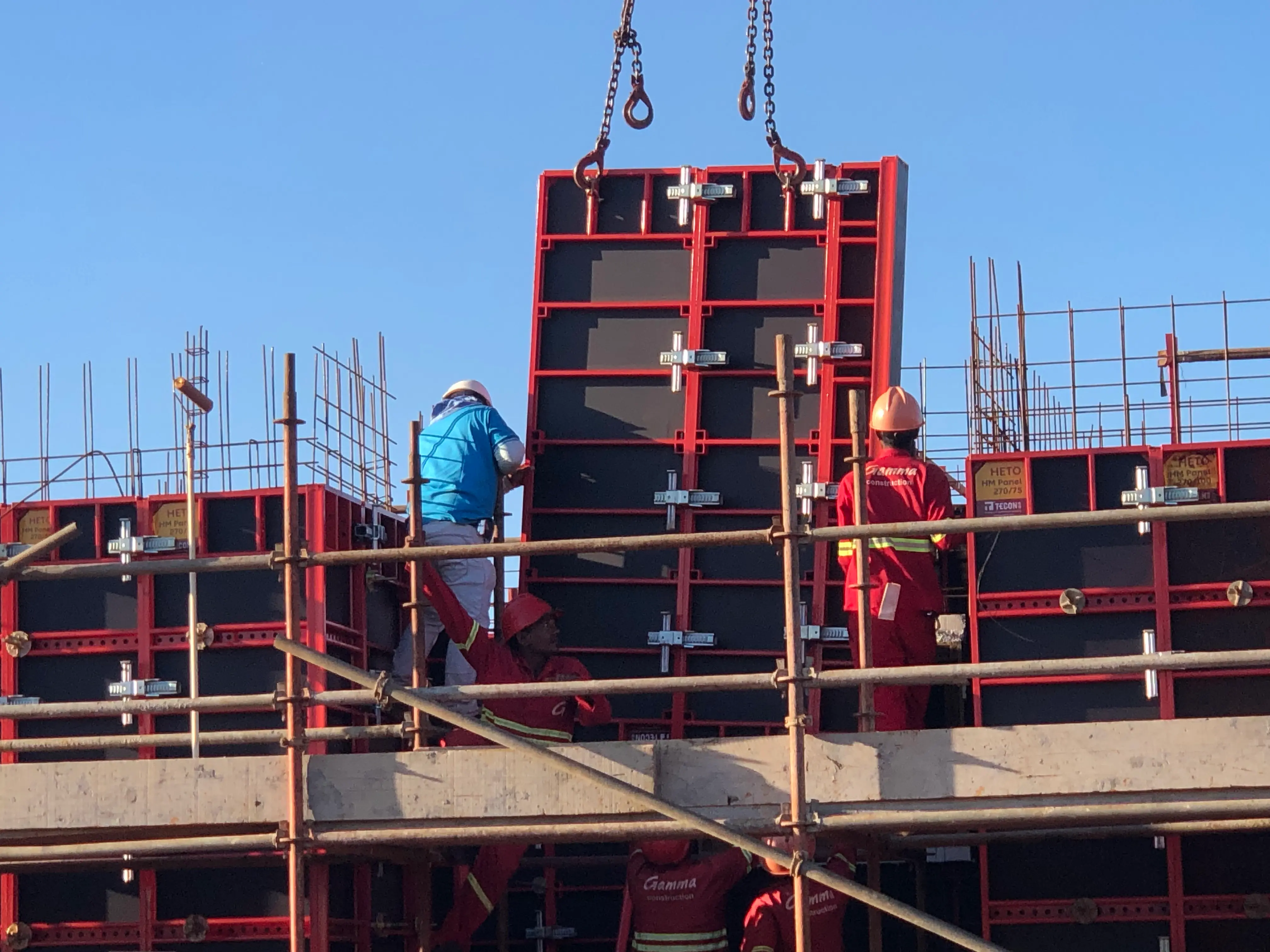

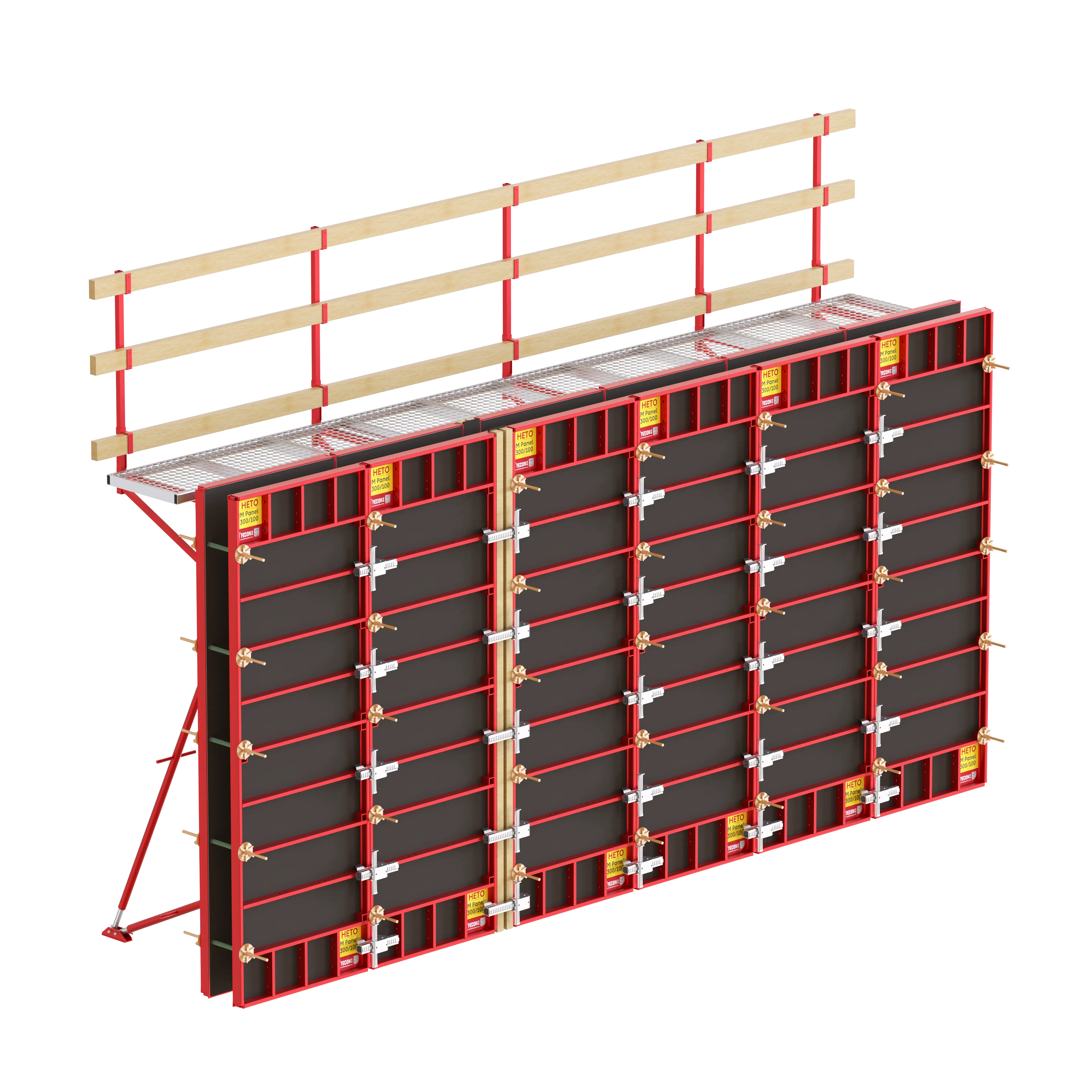

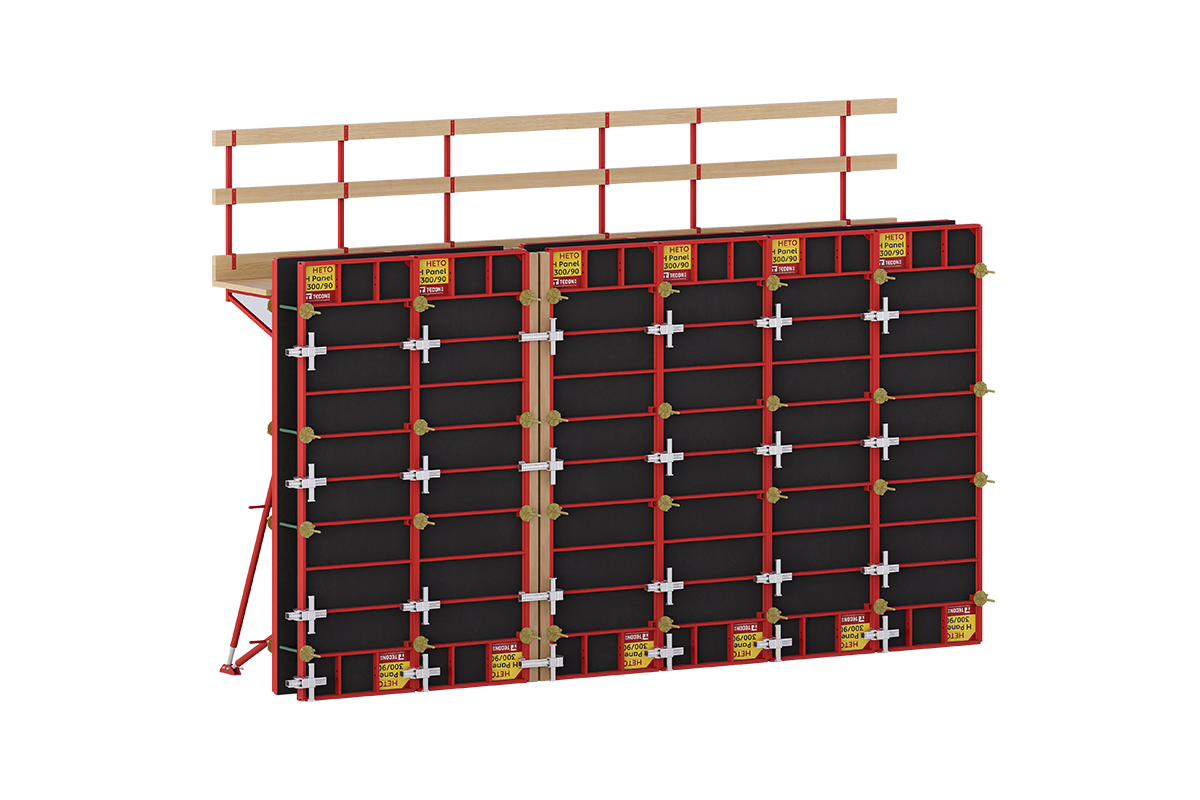

TECON HETO Frame Wall Formwork is an universal and high efficient panel formwork system. It consists of S355 steel frame formwork panel, adjustable alignment clamp and panel strut ect.. It can be widely applied into medium to big size wall projects under crane asisstance.
Fast & Simple Assembly – Uses a single panel coupler for quick installation, with just four clamps needed for two 3×1m panels.
Adaptable Design – Supports L, T, and U-shaped walls
Smooth Finish – Fewer visible holes and a high-quality concrete surface.
Long-Lasting & Cost-Effective – Durable materials ensure extended service life.

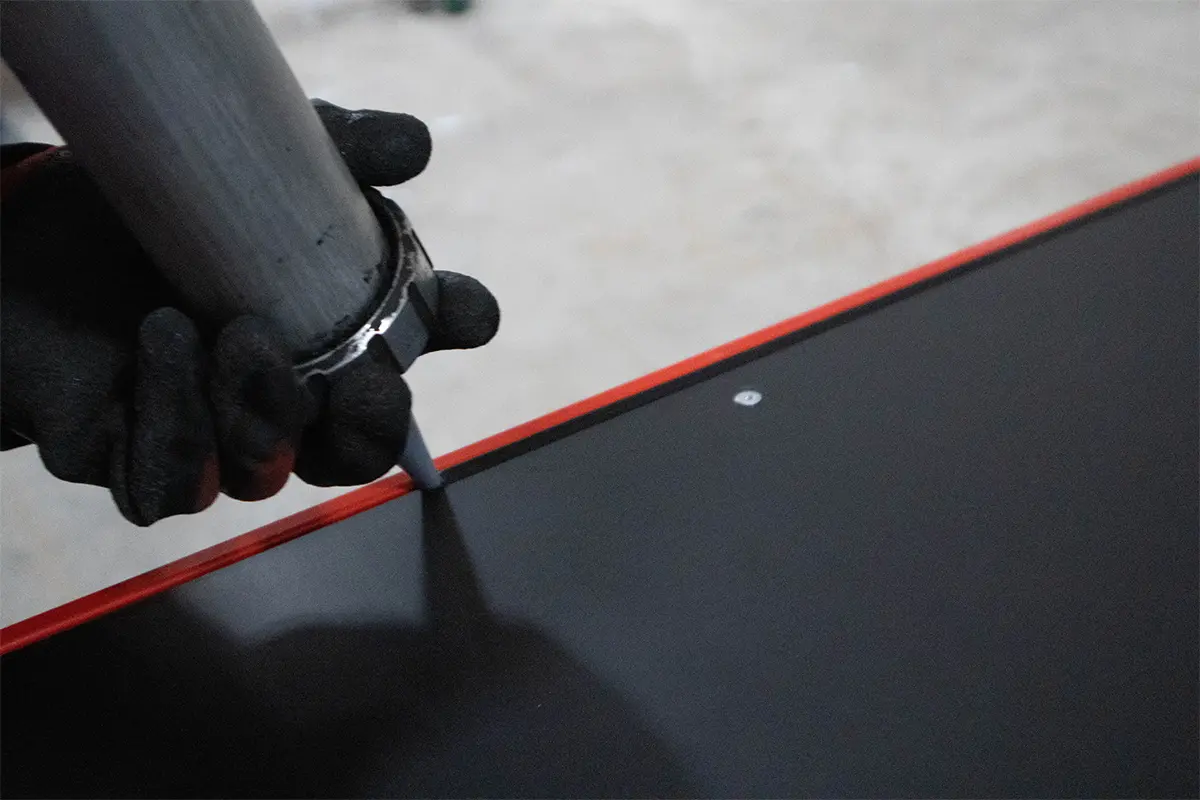

Easy Maintenance – Powder coating prevents concrete adhesion, simplifying cleaning.
Corrosion-resistant – Protects against rust and moisture.

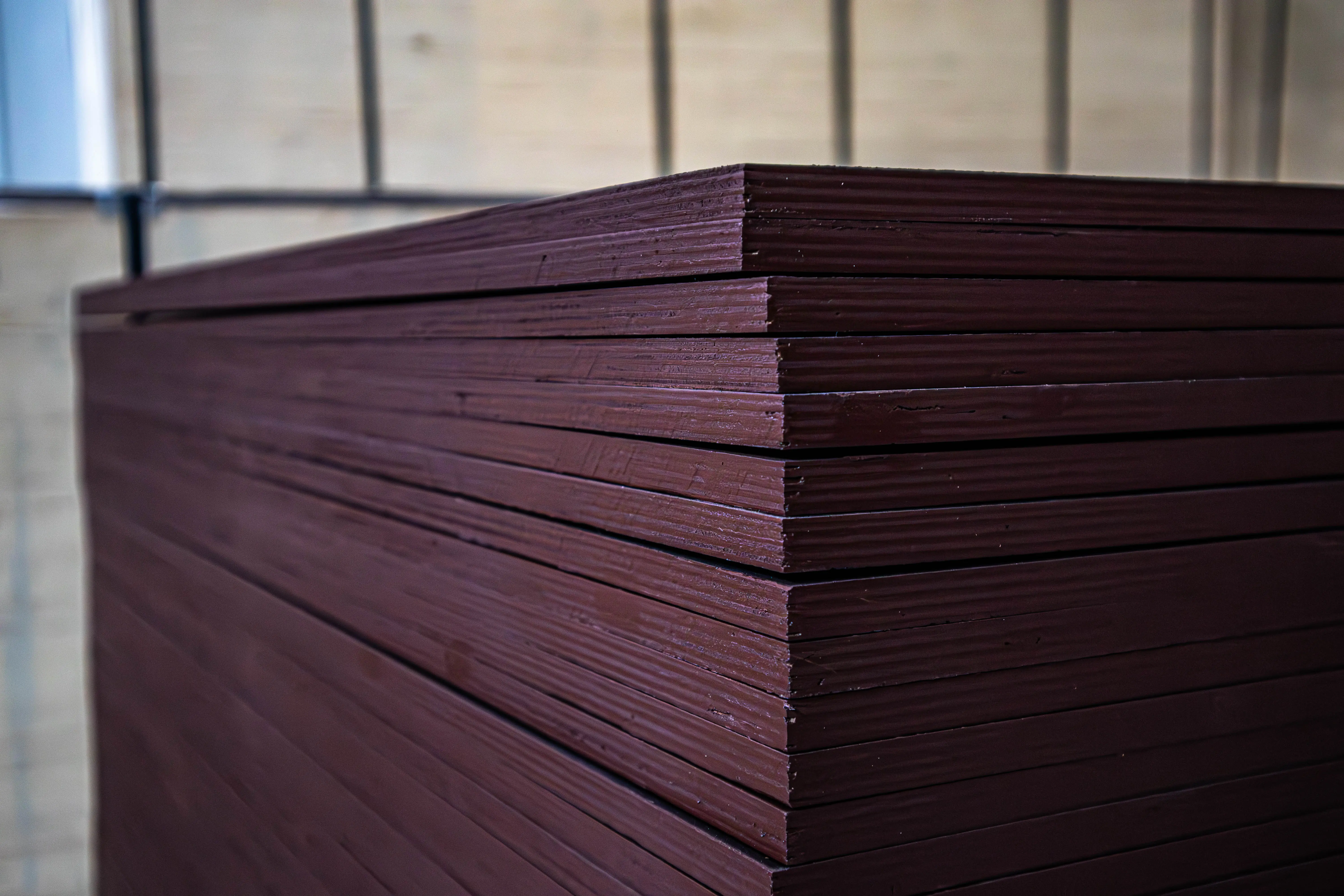

Replaceable Plywood – High-quality birch plywood with up to 30 times for longevity and cost savings.
| System Type | Panel Formwork |
| Material | Q355 Steel Profile |
| Dimensions | H Panel heights: 3.0, 2.4, 1.8, 1.2 m Panel Widths: 1.0, 0.75, 0.6, 0.35 m |
| Panel Weight | 35 kg/sqm |
| Max Panel Size | 3*1 m |
| Panel Depth | 73 mm |
| Max Permissible Fresh Concrete Pressure | 60 kN/sqm |
| Installation Time | 100 m2 |

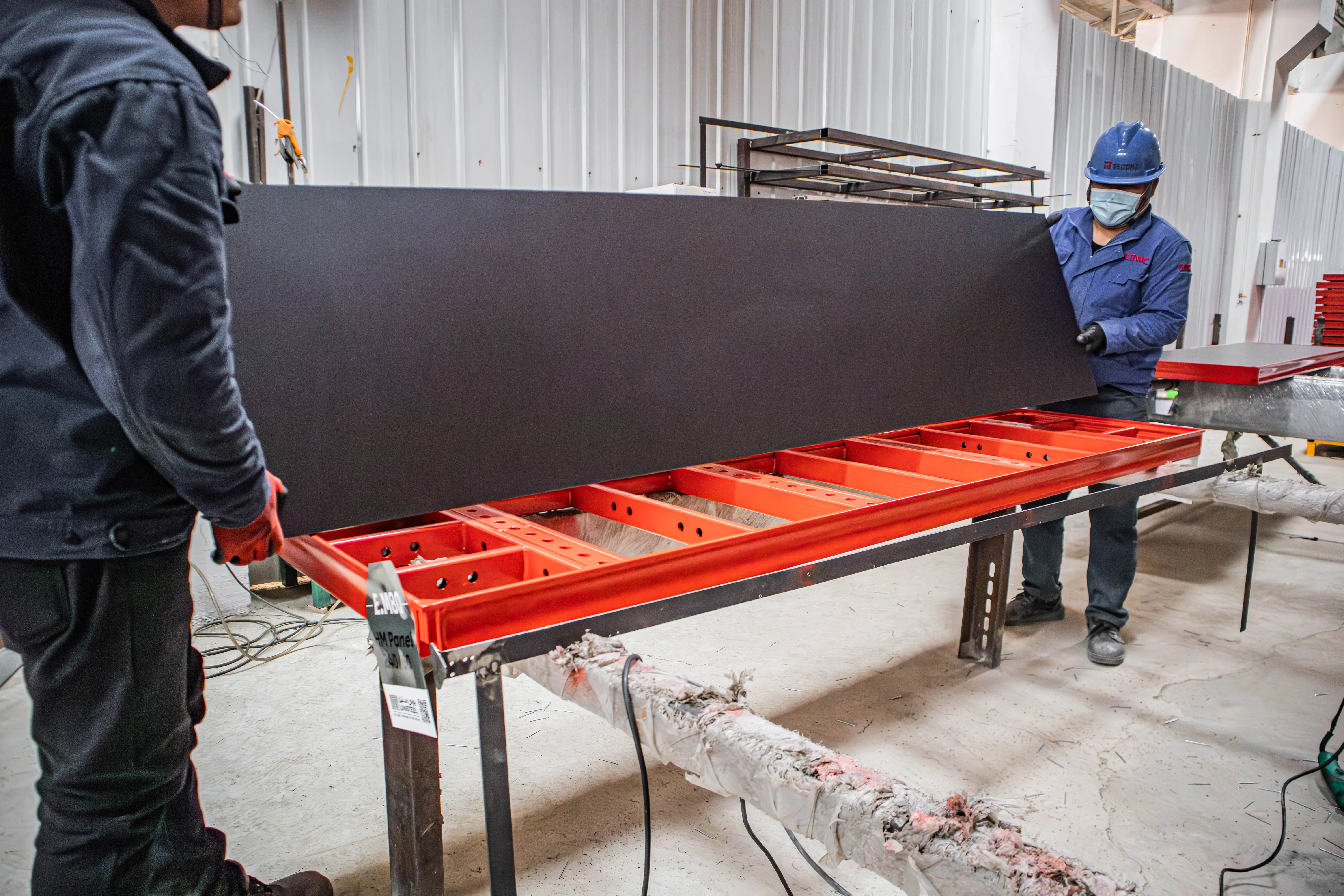

| Formlining | 12 mm TECON-Form birch plywood |

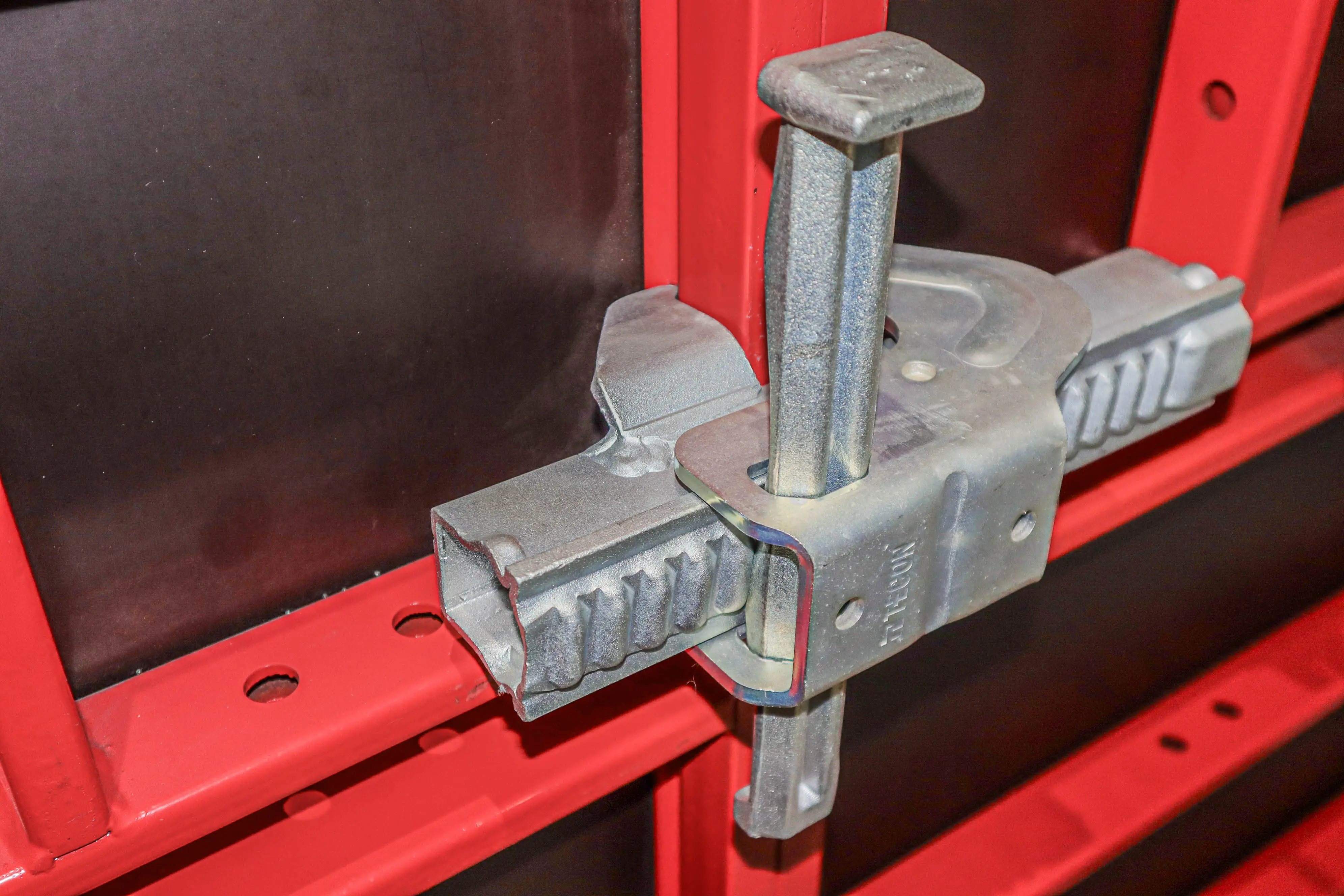

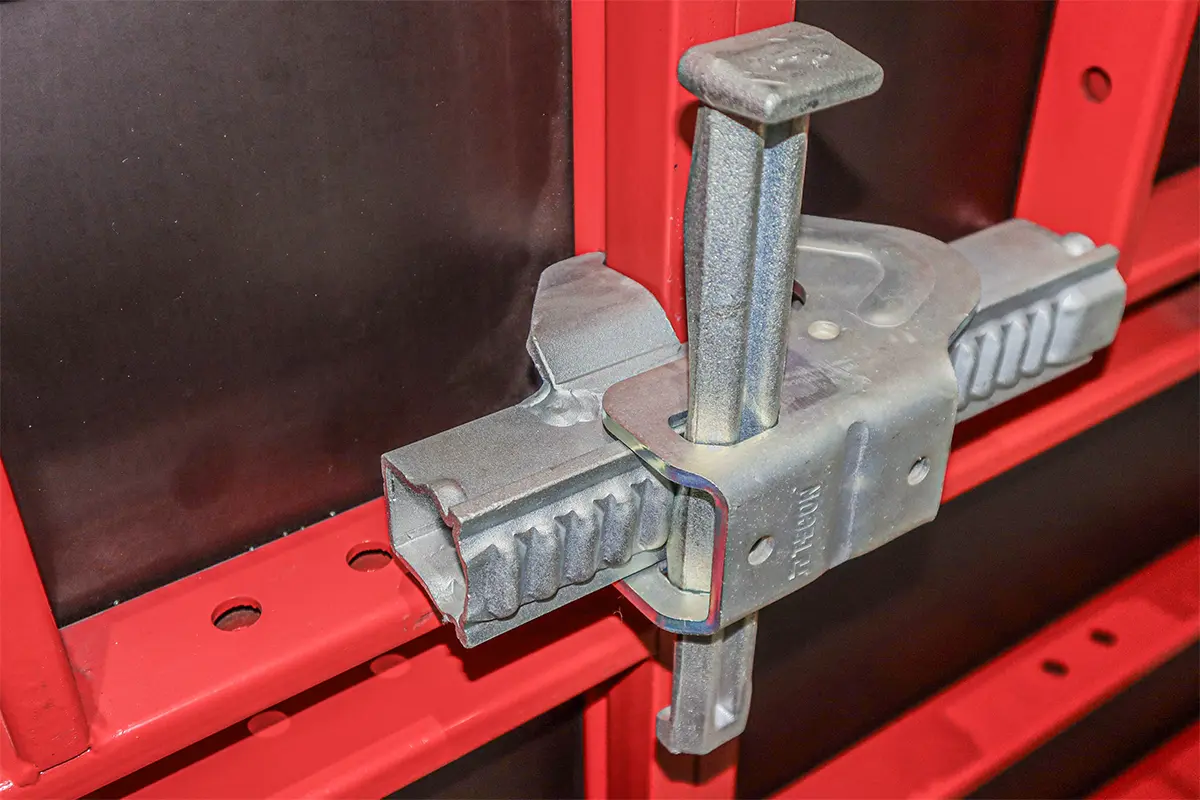

| Connection Technology | Adjustable Alignment Coupler with 135 mm range |
| Versatile Applications | Ideal for foundations, basements, high-rise buildings, swimming pools, retaining walls, tunnels, columns, and reconstruction projects. |
Projects
Coal Storage
Metro Station
Silo Tank
Shanghai Yangzte Bridge
Dam
Subway
Silo Tank
ITC Colombo One Hotel & Residences
Slab Flex 20 Formwork, Guatemala
National Immigration Office
Queens Peak
Diamond Twin Tower
Yujing Center
Olympia City
Jamaica Shopping Center
Jinying Shopping Center
Sheraton Apple One
Bearing Capacity Test, Germany

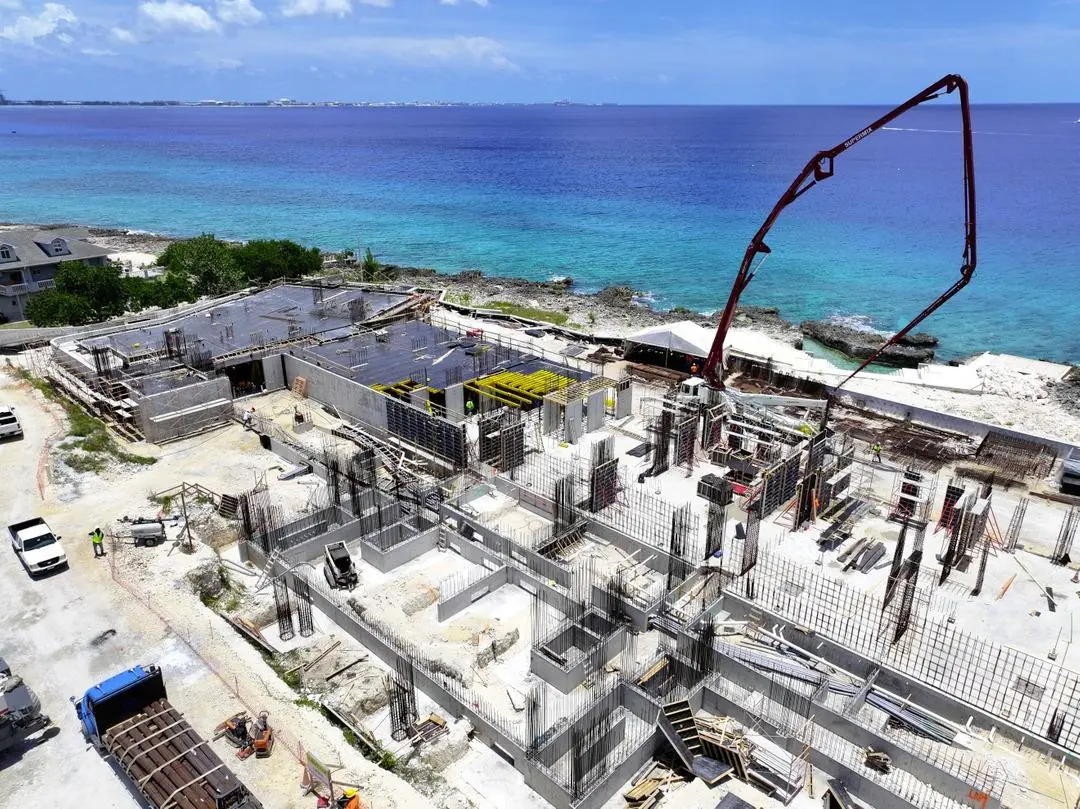

Sea Shore Villa
Housing Project
Apartment
Housing in Mauritius
Housing in Phillipine
Housing in UAE
Residential & Commercial Formwork
High Rise Formwork
Modular Houses
Bridge Formwork
Dam Formwork
Tunnel Formwork
LNG & Water Tank Formwork

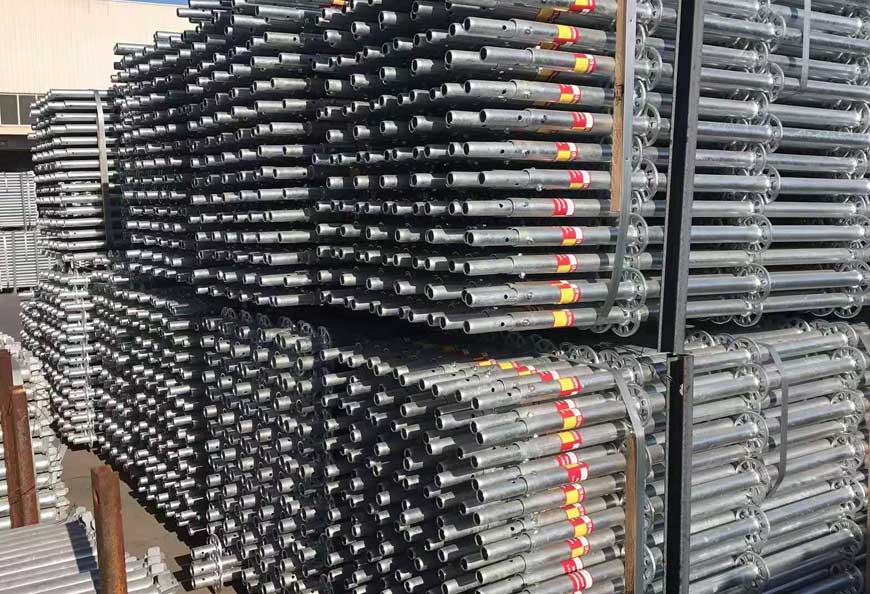

Scaffolding Solutions
