TECON Single Side Wall Formwork

Features of Single Side Formwork

• Standard frame brackets can be assembled simply and efficiently with crane assistance

• Both standard and customized supporting frame heights are available

• Adapt to different fresh concrete pressure by the different spacing of frames

• Can be moved by workforce via its cast wheels

• Fully compatible with all TECON wall formwork system

Specifications of Single Side Formwork

• Operation platform with handrail at the top of the bracket

• Main support frame sizes determine different wall heights

• Up to 8 meters concrete casting height with a single cast

• Height of the standard construction frame: 4.0 m

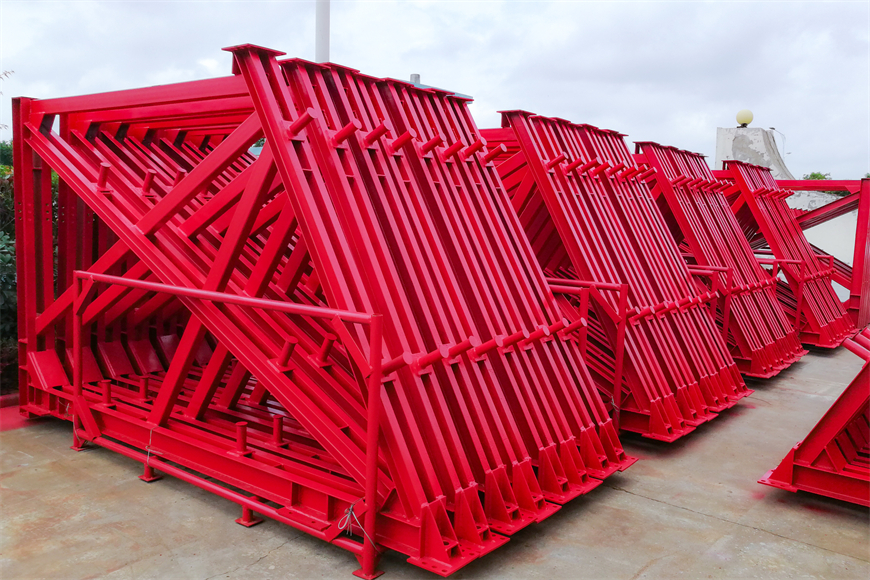

• Height of extension frame A: 2.2 m

• Height of extension frame B: 1.5 m

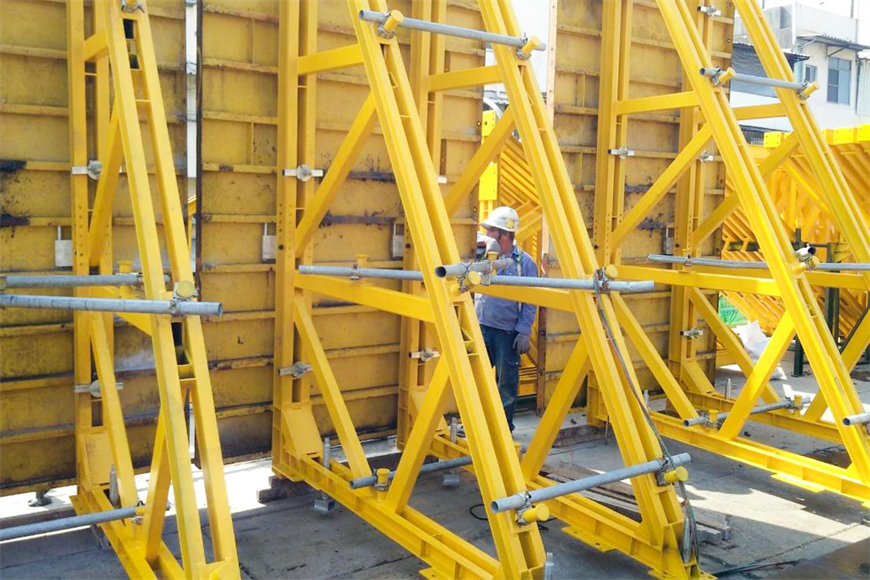

• Can be braced by G.I. pipes and couplers as reinforcement between frames

Application of Single Side Formwork

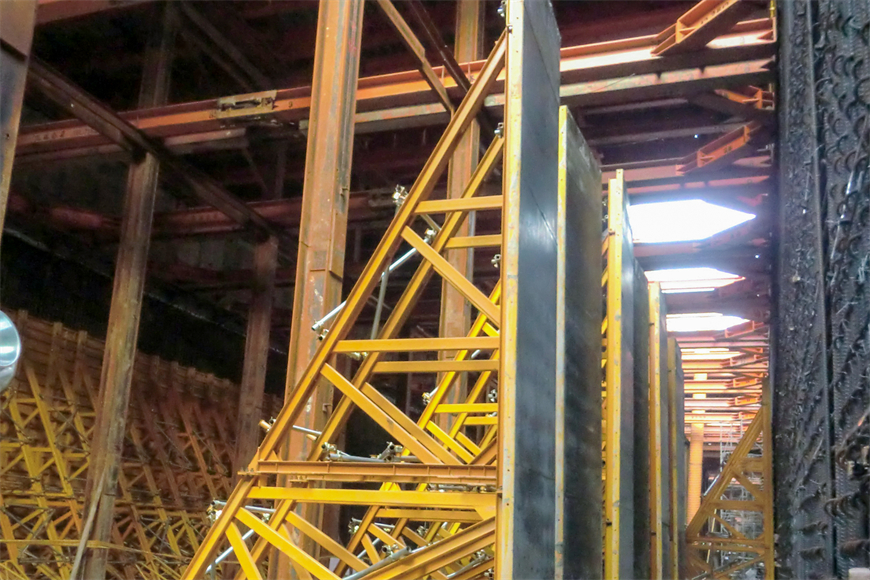

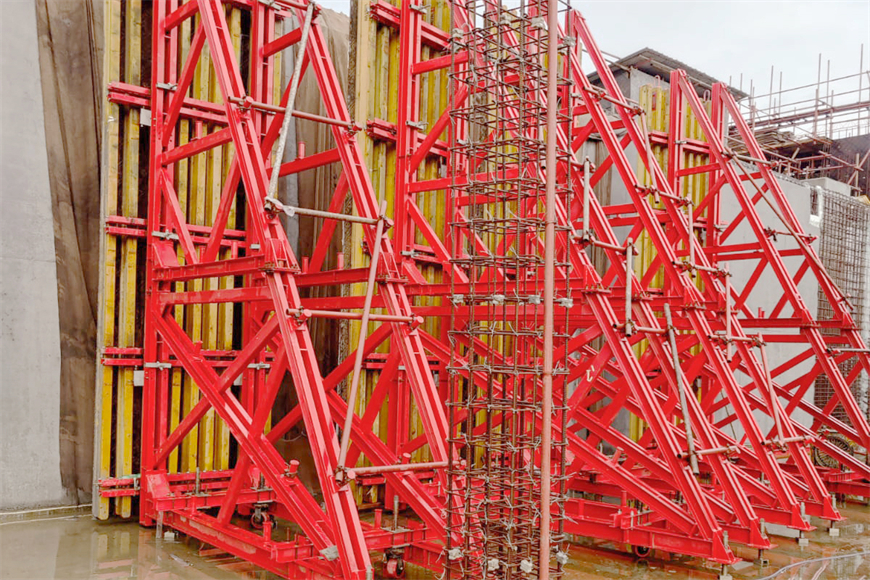

     Single side walls in the metro station, sewage treatment plants, and other excavations projects
