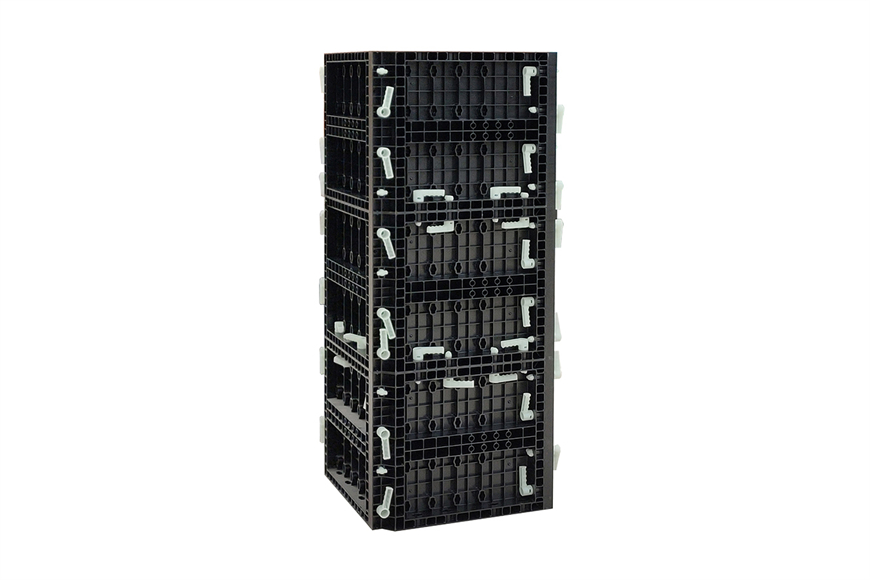

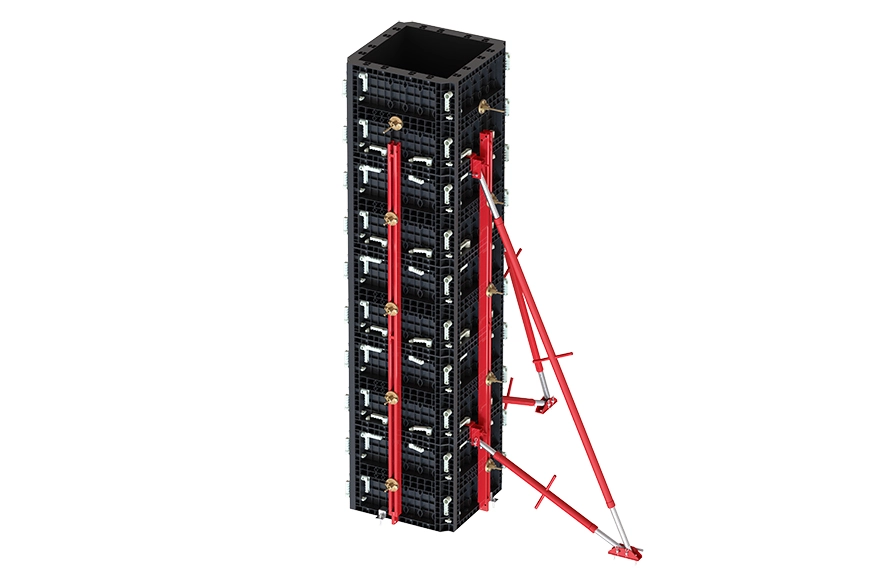

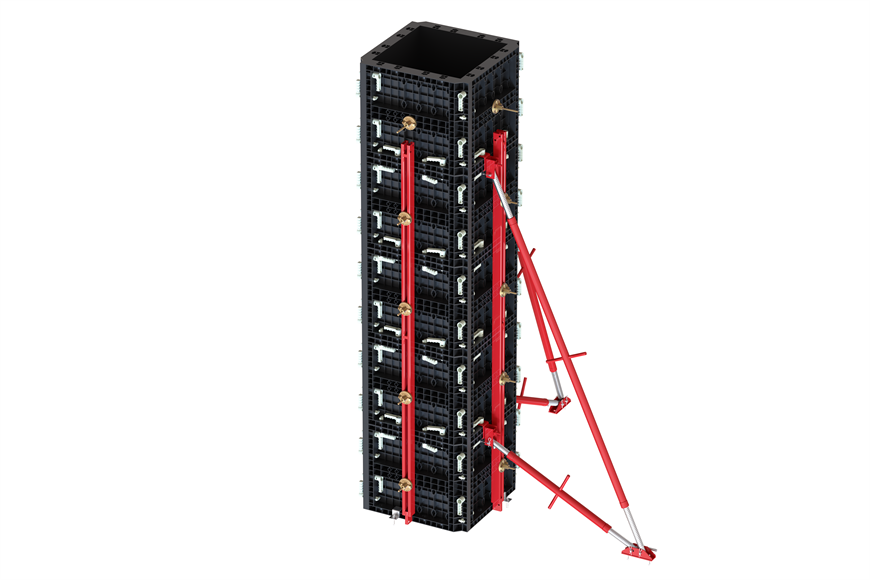

TECON Adjustable Plastic Column Formwork

Feature of TECON Adjustable Plastic Column Formwork

• Efficient installation due to lightweight plastic column panels and erection handles without crane assistance

• 66 types of column sizes are available through only 2 types adjustable panels

• Fast and extremely easy to assemble with only a few accessories, no skilled workers required




Specification of TECON Adjustable Plastic PVC Column Box/Formwork

• Main material of plastic column panel is ABS

• Only 2 sizes of plastic panels: 725*600mm and 675*600mm, weights 6.18kg and 5.83kg accordingly

• Can realize column sizes from 150*150mm to 650*650mm, with 50mm as the increment, totally 66 sizes available

• High strength and durable panels can reach up to 100 reuse times

• Max permissible fresh concrete pressure up to 80 kN/sqm

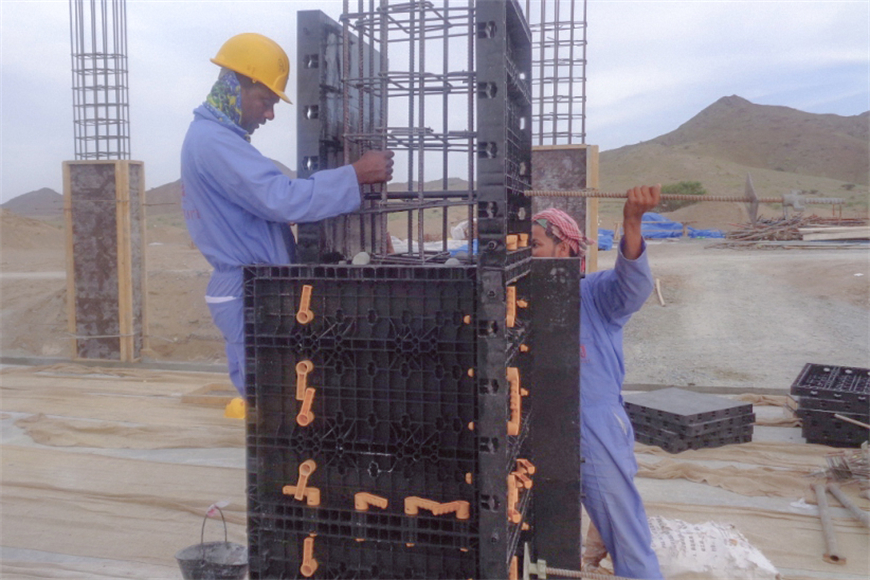

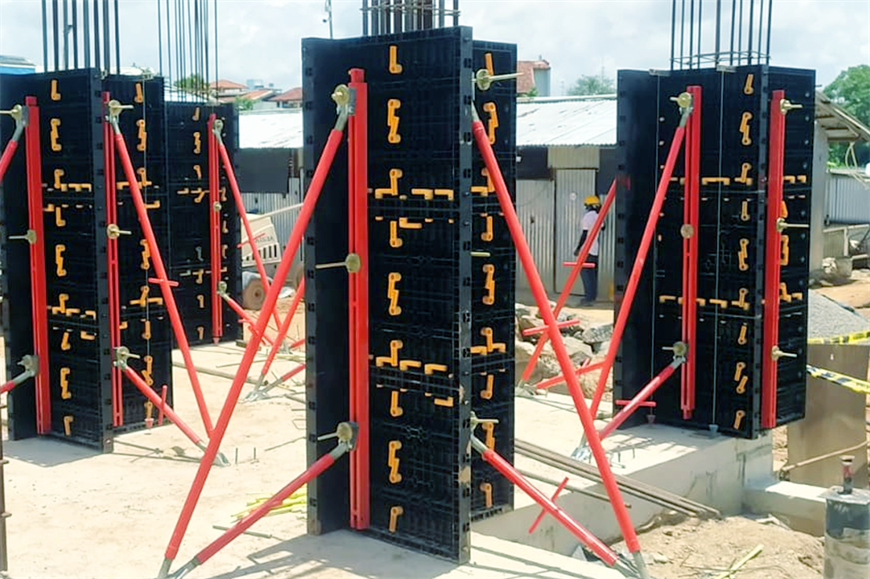

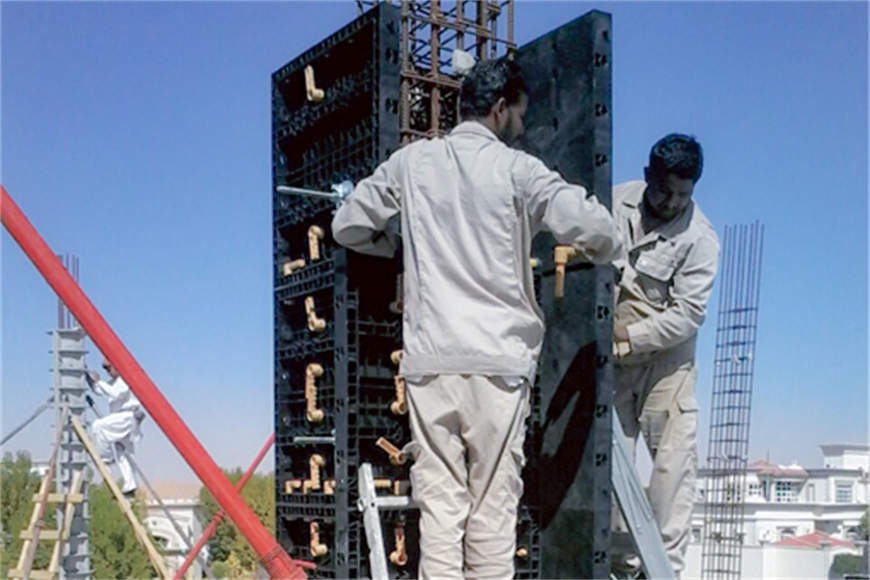

Application of TECON Adjustable Plastic PVC Column Box/Formwork

Round columns in housing or commercial building projects
