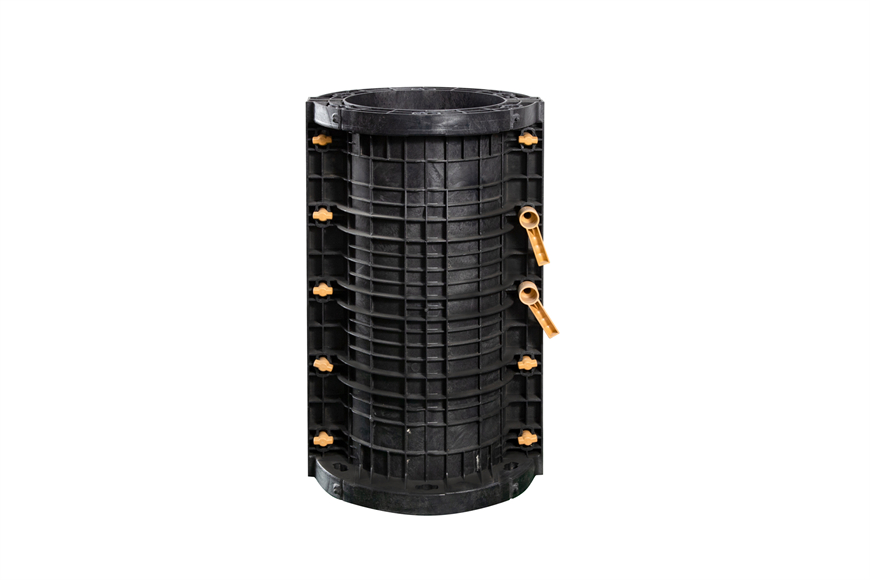

TECON Round Column Formwork consists of plastic round column frame and steel round column frame in different diameters. Plastic circular column formwork is the lightest and economic round column formwork with diameter ranges from 300mm to 450mm with 50mm as increment. Steel round column formwork can be customzied in bigger diameters at any size.
The fastest way to make round columns whatever its plastic or steel
Easy and quick assembly by simply rotating the handles or fasten the bolts

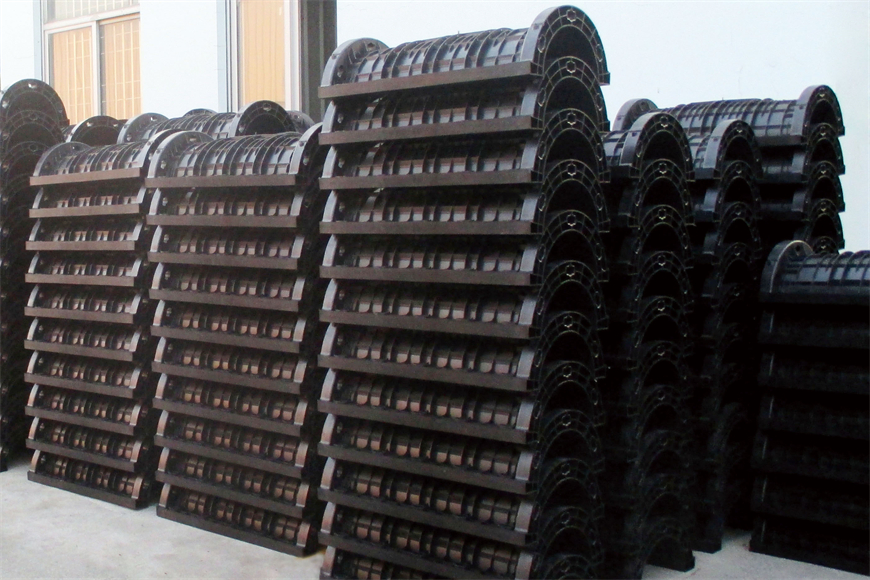

Easy stacking with each other during transport and storage
Plastic round column formwork can be assembled by hand while steel round column formwork need crane assistance
Main material of plastic column panel is PP & fiber glass
Main material of steel column panel is 3mm to 6mm thick steel sheet
Main panel sizes of plastic is 750mm in height, and 300, 350, 400, 450mm in diameter
Main panel size of steel will follow your requirement from 200mm to 1200mm
Max permissible fresh concrete pressure: 80 kN/sqm
Round columns in housing or commercial building projects.
Projects
Coal Storage
Metro Station
Silo Tank
Shanghai Yangzte Bridge
Dam
Subway
Silo Tank
ITC Colombo One Hotel & Residences
Slab Flex 20 Formwork, Guatemala
National Immigration Office
Queens Peak
Diamond Twin Tower
Yujing Center
Olympia City
Jamaica Shopping Center
Jinying Shopping Center
Sheraton Apple One
Bearing Capacity Test, Germany
Sea Shore Villa
Housing Project
Apartment
Housing in Mauritius
Housing in Phillipine
Housing in UAE
You can send us your material list to request a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via the below contacts.
Email: info@teconform.com
Phone: +86-512-65650586
Mobile: +86-13862020161.
By T/T or L/C.
For climbing formwork, self-climbing platform, plastic formwork, we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.
For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.
For other systems, the lead time is from 30 to 45 days.
For a more accurate lead time, don't hesitate to contact us for a specific product based on your quantity.
